Molex Mini-Fit Sr.™ 连接器
莫仕 Mini-Fit Sr.™ 连接器采用镀银或其他设计，可承受高达 50.0A 的电流，具有出众的电气可靠性，可极大地降低各种应用的成本，如工业、消费品、电源、医疗和商务车。这些连接器具有可防止连接器误配接的极化外壳，双梁（母头）端子设计使其具有四个触点，确保实现出众的接触可靠性，同时，外壳上的端子位置保证（PTA）定位器可防止端子意外拧出。
特性
- Silver-plated contacts offer significant cost savings over gold-plating and avoid the need to manually lubricate tin-plated versions to mitigate fretting corrosion
- 50A interconnect solution supports high-power server, telecommunication, and industrial equipment requirements
- Polarized housing prevents connector mismating
- Dual-beam (female) terminal design provides four points of contact and ensures superb contact reliability
- Terminal Position Assurance (TPA) retainer required on housings prevents terminal back-out
- RoHS compliant
应用
- Industrial
- Copiers
- Printers
- Power supplies
- Consumer
- Washers
- Dryers
- Medical
- X-ray
- Automotive
- Two-wheelers
- Commercial vehicles
- Telecommunications/networking
- Servers
- Power supplies
规范
- Electrical
- 600VAC/DC maximum voltage rating
- 50.0A maximum current rating per contact
- 1.0mΩ contact resistance
- 1000MΩ insulation resistance
- Mechanical
- 0.25kg to 3kg contact insertion force range
- 10.0kg minimum contact retention to housing
- 3.0kg maximum insertion force to PCB
- 3.0kg maximum mating force
- 3.0kg maximum unmating force
- 30 cycle durability
- -40°C to +105°C operating temperature range
- Materials
- Black housing
- Copper alloy contacts
- Plating
- Silver in the contact area
- Tin in the solder tail area
- Nickel underplating
- 0.062mm, 0.093mm, 0.125mm, and 0.25mm PCB thicknesses
视频

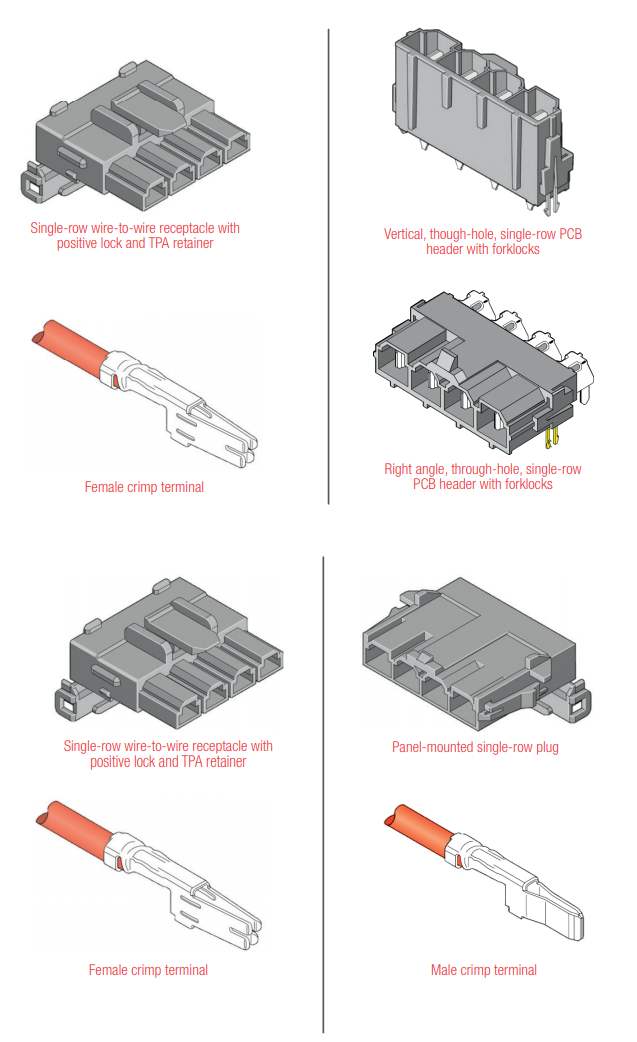

Mating Configuration
