Molex 弹簧夹
莫仕 弹簧夹可在各种工作条件下提供高耐用的连接性能。这些紧凑的弹簧夹提供从 0.25mm 到 2.00mm 的宽幅工作范围，具有特定负载控制特性，可提高设计灵活性。105386 和 105439 系列带防划破设计，可防止组装过程中破坏触点。105385 系列具有打结的条纹，可防止焊料脱焊。莫仕弹簧夹被设计用于智能手机和移动设备，也适用于工业应用。
特性
- Wide working range from 0.25mm to 1.10mm offers greater design flexibility with specific loading control

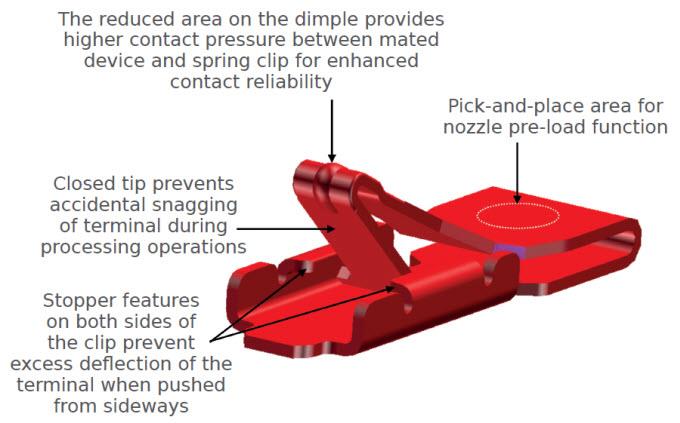

- Anti-snag design (105386 and 105439) prevents contact damage during assembly processing and yield loss
- Narrow clip width of 1.00mm (105386) supports small PCB applications
- 1,500 durability cycles (105386) delivers sustained high performance

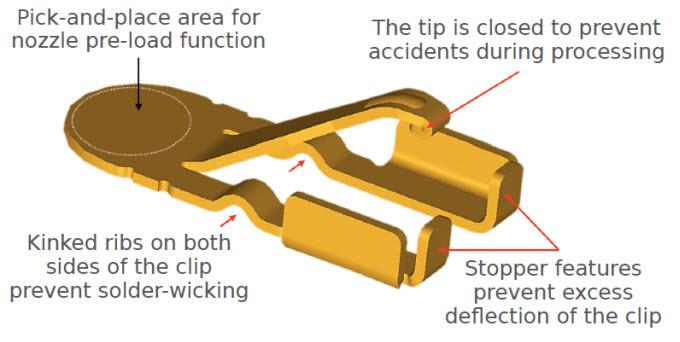

- Kinked ribs (105384) prevents solder wicking
- Device-to-PCB grounding contact reduces EMI noise and electrostatic discharge
- RF-to-PCB contact provides greater cost savings when used with non-soldered wireless devices (example: antennas)
应用
- Consumer / Data / Telecom / Networking
- Digital cameras
- Digital video recorders
- Wireless LAN devices
- Set-top boxes
- Small Office/Home Office (SOHO) switches and routers
- Smartphone and Mobile Devices
- Industrial
- Surveillance, security cameras, and systems
- Point-of-sale (POS) scanners
视频
Series 105384 Call-Outs
Series 105386 Call-Outs
Series 105439 Call-Outs
