ODU Military & Defense Connectors
ODU Military and Defense Connectors are designed to be smaller, lighter, and faster, while still withstanding harsh operating and environmental conditions. These high-speed, high-density connectors are highly reliable and ideal for soldier communication systems, military vehicles, and unmanned systems (UAV / UGV / UAS). Other military applications include power management devices, software-defined/air traffic control radios, secure/encrypted communication, VoIP, computer/PAN, and data recording devices.
Note: The contact arrangement of an ODU data transmission connector differs from a standard data transmission connector due to the robust ODU-specific design. However, the ODU design meets the electrical specifications that are derived from the respective standard data transmission protocol.
Features
- High-speed data-capable, including USB, Ethernet, and HDMI
- High density, up to 70% size, and weight reduction
- Rugged, robust housings with non-reflective surfaces
- IP68, IP69, IP6K8, and IP6K9K watertight protection options
- Dual-lock and breakaway with threaded coupling ring
- Cable assembly integrated solutions
Applications
- Unmanned systems
- UAV
- UGV
- UAS
- Soldier communication systems
- Military vehicles

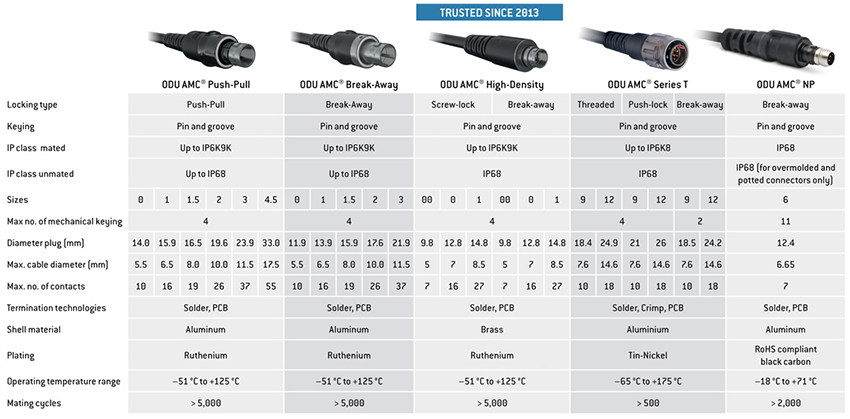

Characteristics
Featured Products
ODU AMC® High-Density Ethernet Cables
Features high contact-density connectors, Ethernet (10Gbit/s) data transmission, and robust design.
ODU AMC® Series T Square Flange Connectors
Standard or reverse gender type with 3 connection options: Backshell, crimp-sleeve/band-it, or PCB.
ODU AMC® Advanced Military Connectors
Advanced and highly reliable connector solution with push-pull locking or break-away function.
ODU AMC® High-Density Miniature High-Speed Connectors
For military, medical, and industrial applications, with significant space and weight reduction.
ODU AMC® High-Density Connectors with Dual Lock
Provide additional protection through screw locking in case of high resistance to vibrations.
ODU AMC® NP Panel-Mount Plugs
Features a breakaway locking principle and ruggedized construction with IP68 protection.
ODU AMC NP快速断开军用连接器
快速断开军用连接器，采用6引脚和7引脚配置。
ODU AMC® T系列三路锁定转一插座连接器
有推挽式、分离式或螺纹锁定型以及9或12外壳尺寸型号可供选择。
ODU MINI-SNAP® Series K IP68 Circular Connectors
Highly configurable push-pull circular connector family with up to IP68 protection when mated.
ODU MINI-SNAP® L系列圆形连接器
高度可配置的推挽式圆形连接器系列可提供的尺寸小至00。
ODU High-Speed & High-Density Connectors
For military, medical, and industrial applications, offers significant space and weight reductions.
ODU AMC® Chrome-Plated High-Speed Connectors
Robust connectors with USB 3.2 Gen 1x1, USB 2.0, HDMI, and Ethernet data transfer capability.
ODU 带USB电缆组件的AMC® High-Density高密度连接器
采用易分离和螺纹锁定方式，以及28AWG线芯规格。
ODU AMC® High-Density Protective Caps
Protects AMC® High-Density Connectors, features TPU black rubber housing with an IPX7 rating.
