Quectel LTE OPEN EVB Kit

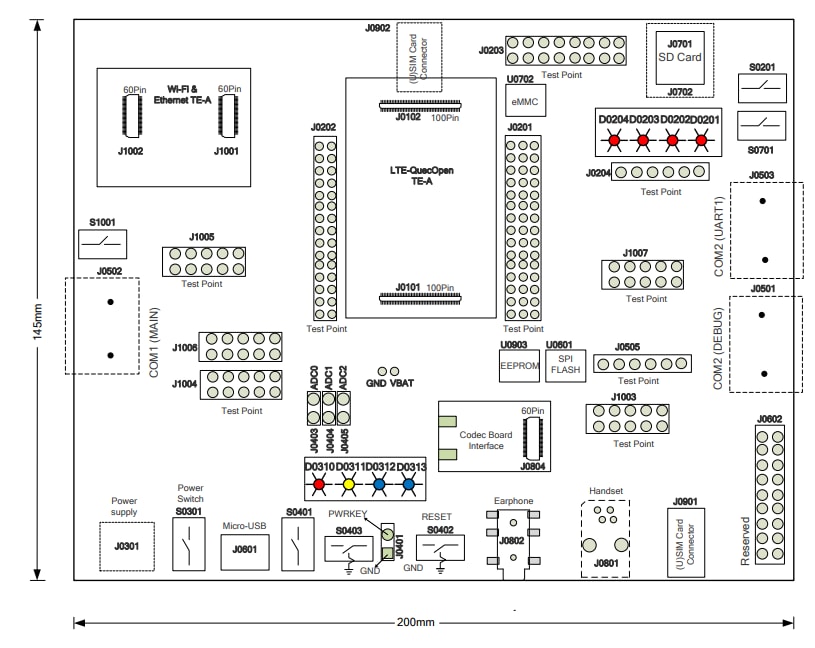

Quectel Wireless Solutions LTE OPEN EVB Kit is designed for developing applications based on Quectel LTE-QuecOpen and Wi-Fi® modules. The LTE OPEN EVB Kit is configured to test the basic functionalities of these modules. The Quectel LTE OPEN EVB Kit features a 4.5V~5.5V power supply, three UART interfaces, a micro-B interface, five switches, and eight LEDs.

Features

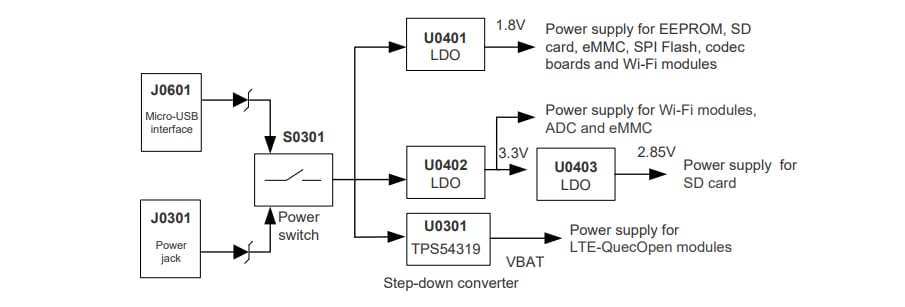

4.5V~5.5V, typically 5.0V DC power supply (J0301 or J0601) , 3.8V V_BAT (T0104)
Supports Quectel LTE-QuecOpen modules
Supports Quectel Wi-Fi modules
MICRON eMMC Device
Supports standard SD card and TF card
GIGADEVICE SPI Flash
Atmel EEPROM
Supports U(SIM) card insertion detection
Supports 3.0V and 1.8V U(SIM) card
Audio interfaces
One digital audio codec board interface
Three analog interfaces for loudspeakers, earphones, and handset
Three UART interfaces
- COM (MAIN) - 1Mbps serial interface for data communication
- COM (DEBUG) - 1Mbps serial interface for debugging
- COM (UART1) - 1Mbps serial interface for data communication

Micro-B interface
4 LEDs are available for signal indication
4 LEDs are available for GPIO testing
Five switches
- Power Switch (S0301) for VBAT ON/OFF control
- SDC1 function switch (S0201) for switching between GPIO and Wi-Fi function
- SDC2 function switch (S0701) for switching between SD and eMMC functions
- PCM function switch (S1001) for switching between BT and codec functions
- Switch S0401 reserved for internal testing
Two buttons
- PWRKEY (S0403) for turning on/off LTE-QuecOpen modules
- RESET (S0402) for resetting LTE-QuecOpen modules
200.0mm ×145.0mm ×1.6mm dimensions
