Rectron P6KE GPP Transient Voltage Suppressor Diodes

Rectron P6KE GPP (Glass Passivation Pellet) Transient Voltage Suppressor Diodes feature excellent clamping capability, low Zener impedance, and fast response time. These diodes operate at 600W peak power dissipation at 1ms, 5W steady-state power dissipation (PM(AV)), and 100A peak forward surge current (IFSM).

Features

  • Glass passivated chip construction
  • Excellent clamping capability
  • Low Zener impedance
  • Fast response time

Specifications

  • 600W peak power dissipation at 1ms
  • 5W steady-state power dissipation (PM(AV))
  • 100A peak forward surge current (IFSM)
  • -55°C to 150°C operating temperature range

Dimensions Diagram

Mechanical Drawing - Rectron P6KE GPP Transient Voltage Suppressor Diodes

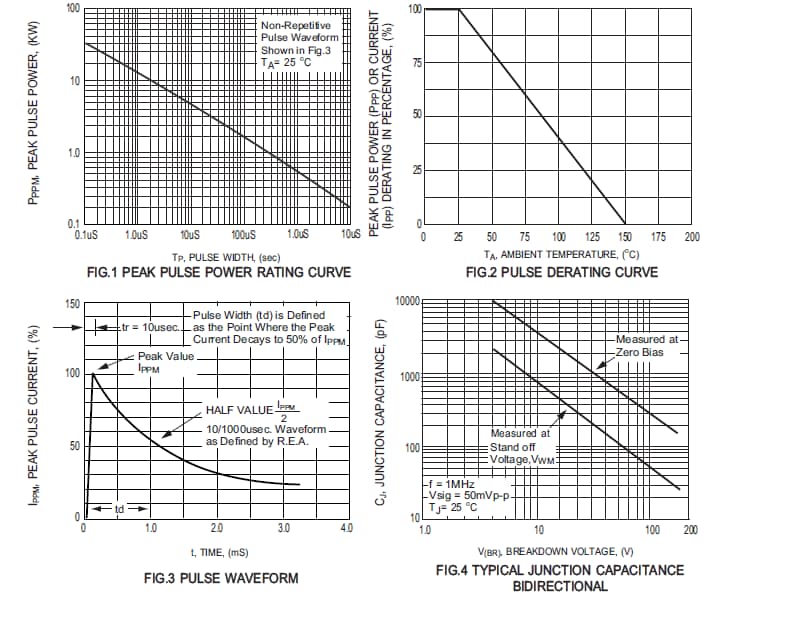

Characteristic Curves

Performance Graph - Rectron P6KE GPP Transient Voltage Suppressor Diodes
View Results ( 36 ) Page
物料编号 数据表 工作电压 击穿电压 钳位电压 最小工作温度 最大工作温度 RoHS - 贸泽
P6KE200A-T P6KE200A-T 数据表 171 V 210 V 274 V - 55 C + 150 C Y
P6KE12-T P6KE12-T 数据表 9.72 V 10.8 V 17.3 V - 55 C + 150 C Y
P6KE15-T P6KE15-T 数据表 12.1 V 13.5 V 22 V - 55 C + 150 C E
P6KE150-T P6KE150-T 数据表 121 V 135 V 215 V - 55 C + 150 C E
P6KE150A-T P6KE150A-T 数据表 128 V 158 V 207 V - 55 C + 150 C Y
P6KE15C-B P6KE15C-B 数据表 12.1 V 13.5 V 22 V - 55 C + 150 C E
P6KE160C-T P6KE160C-T 数据表 130 V 144 V 23.5 V - 55 C + 150 C E
P6KE18-T-S-R01-B P6KE18-T-S-R01-B 数据表 26 V - 55 C + 150 C Y
P6KE18-T-S-R01-T P6KE18-T-S-R01-T 数据表 26 V - 55 C + 150 C Y
P6KE18C-T P6KE18C-T 数据表 14.5 V 16.2 V 26 V - 55 C + 150 C E
