Sanyo Denki 92W 9WL Splash-Proof Fans
Sanyo Denki 92W 9WL Splash-Proof Fans feature a maximum airflow of 3.7m3/min, a maximum static pressure of 430Pa, and a long service life of 100,000 hours. These fans are equipped with the PWM control function to externally control the fan speed, lowering noise, and improve the energy efficiency of devices. The 92W 9WL splash-proof fans are IP68-rated water and dust protected to ensure stable fan operation even in harsh environments. These fans are suitable for cooling industries, photovoltaic (PV) inverters, rapid electric vehicle (EV) charging stations, and digital signage.
Features
- 3.7m3/min to 130.6 CFM
- 430Pa to 1.72" H2O
- Long service life of 100,000 hours
- IP68-rated water and dust resistant
- Low noise
- High-energy efficiency
Applications
- Cooling industrial inverters
- PV inverters
- Rapid EV charging stations
- Digital signage
Additional Resource

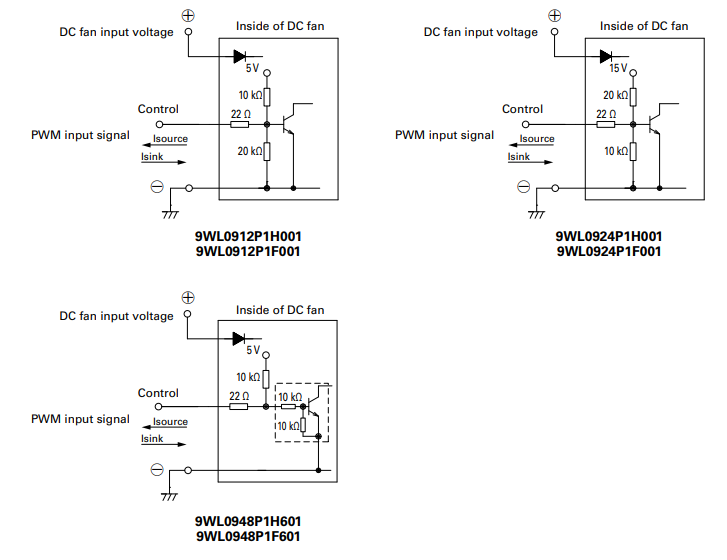

Schematic

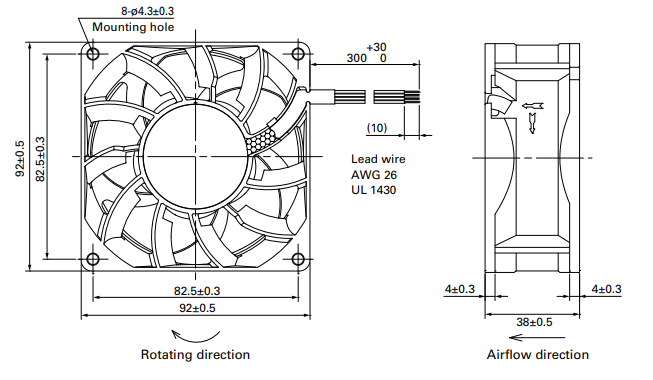

Dimensions
Related Fans
Sanyo Denki 9WL Splash Proof Fans
IP68-rated for water and dust resistance while offering long lifespan and high air flow.
View Results ( 27 ) Page
| 物料编号 | 数据表 | 描述 | 工作电源电压 | 气流 | 速度 | 压力类型 | 噪声 | 功率额定值 | 深度 |
|---|---|---|---|---|---|---|---|---|---|
| 9WL0912P1F001 |  |
直流风扇 Fan, 92x92x38mm, 12VDC, Splash/Dust Proof, 100Khr, Ribless, Tach/PWM, IP68 | 12 VDC | 102 CFM (2.9 m3/min) | 7000 RPM | 1.05 in H2O | 55 dBA | 11.4 W | 38 mm |
| 9WL0912P1H001 | |
直流风扇 Fan, 92x92x38mm, 12VDC, Splash/Dust Proof, 100Khr, Ribless, Tach/PWM, IP68 | 12 VDC | 131 CFM (3.7 m3/min) | 9000 RPM | 1.72 in H2O | 61 dBA | 22.8 W | 38 mm |
| 9WL0924P1H001 | |
直流风扇 Fan, 92x92x38mm, 24VDC, Splash/Dust Proof, 100Khr, Ribless, Tach/PWM, IP68 | 24 VDC | 131 CFM (3.7 m3/min) | 9000 RPM | 1.72 in H2O | 61 dBA | 22.8 W | 38 mm |
| 9WL0924P4J001 | |
直流风扇 Fan, 92x92x25mm, 24VDC, Splash/Dust Proof, 180Khr, Ribless, Tach/PWM, IP68 | 24 VDC | 77.7 CFM (2.2 m3/min) | 5000 RPM | 0.4 mmAq | 44 dBA | 5.04 W | 25 mm |
| 9WL0924P4S001 | |
直流风扇 Fan, 92x92x25mm, 24VDC, Splash/Dust Proof, 180Khr, Ribless, Tach/PWM, IP68 | 24 VDC | 59.7 CFM (1.69 m3/min) | 3850 RPM | 62.1 Pa | 37 dBA | 2.64 W | 25 mm |
| 9WL0912P4J001 | |
直流风扇 Fan, 92x92x25mm, 12VDC, Splash/Dust Proof, 180Khr, Ribless, Tach/PWM, IP68 | 12 VDC | 77.7 CFM (2.2 m3/min) | 5000 RPM | 105 Pa | 44 dBA | 5.04 W | 25 mm |
| 9WL0948P1H601 | |
直流风扇 Fan, 92x92x38mm, 48VDC, 130.6CFM, Splash Proof, 100Khr, Ribless, Tach/PWM, IP68 | 48 VDC | 131 CFM (3.7 m3/min) | 9000 RPM | 1.72 in H2O | 61 dBA | 23.04 W | 38 mm |
| 9WL0912H4001 | |
直流风扇 DC Axial Fan, 92x92x25mm, 12VDC, Splash/Dust Proof, 180Khr, Ribless, Tach, IP68 | 12 VDC | 3150 RPM | 32 dBA | 25 mm | |||
| 9WL0912H4002 | |
直流风扇 Axial Fan, 92x92x25mm, 12VDC, Splash/Dust Proof, Long Life 180Khr, Ribless, IP68 | 12 VDC | 3150 RPM | 32 dBA | 25 mm | |||
| 9WL0912H4D001 | |
直流风扇 Axial Fan, 92x92x25mm, 12VDC, Splash/Dust Proof/180K, Ribless, Lock Sensor, IP68 | 12 VDC | 3150 RPM | 32 dBA | 25 mm |
发布日期: 2018-09-07
| 更新日期: 2022-09-13
