Semtech RClamp3354S RailClamp TVS Array
Semtech RClamp®3354S is a low voltage, low capacitance RailClamp Transient Voltage Suppression (TVS) Array optimized to safeguard high-speed data signals from Electrostatic Discharge (ESD) threats. Semtech RClamp3354S incorporates surge rated, low capacitance steering diodes, and a TVS diode in a single package. This device will protect up to four high-speed I/O lines. RClamp3354S withstands a high level of surge current (25A, 8/20µs) while minimizing capacitance loading (5pF) to the transmission line. The RClamp3354S also features a low operating voltage of 3.3V for superior protection. The high surge capability means it can be used in high threat environments in applications such as 10Gb, 100Gb, and 1000Gb Ethernet lines, telecommunication lines, and low-voltage differential signaling (LVDS) interfaces.
Features
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) 30kV (air), 30kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 25A (8/20µs)
- Array of surge rated diodes with internal TVS diode
- Protects up to four I/O lines
- <5pF capacitance for high-speed interfaces
- 0.25Ω dynamic resistance
- 3.3V operating voltage
- Solid-state silicon-avalanche technology
- SOT-23-5 package
- Halogen-free, lead-free, and RoHS/WEEE compliant
Applications
- 10/100/1000 Ethernet
- Central office equipment
- LVDS interfaces
- MagJacks/integrated magnetics
- Notebooks/desktops/servers
Related Products
Semtech TVS和ESD保护
用于保护敏感电路免受电应力损害的先进器件。
Semtech RClamp0561Z Femto Farad RClamp®
1-Line, 120fF ESD protection for high-speed lines; rated at +/-12kV contact per IEC 61000-4-2.
Semtech RClamp®2431TQ Ultra-Low Capacitance TVS Device
Engineered to protect high bandwidth car antennas from dangerous ESD transients.
Semtech RClamp3304NA & RClamp3304P RailClamp® TVS Arrays
Low capacitance 3.3V TVS arrays designed to protect high speed data interfaces.
Semtech RClamp3346P Low Capacitance RClamp®
Protection for highspeed data interfaces and features a high maximum ESD withstand voltage.
Semtech RClamp3354S RailClamp TVS Array
Low voltage, low capacitance RailClamp® TVS Array optimized to safeguard high-speed data signals.

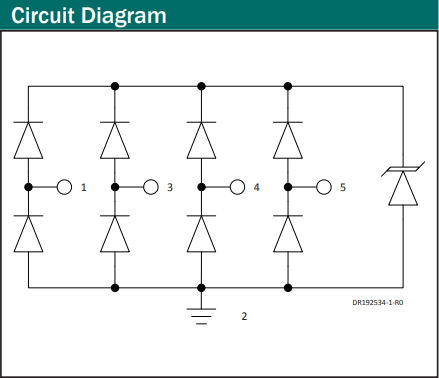

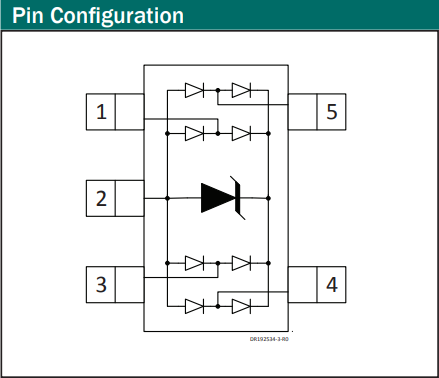

Diagrams
