SparkFun Thing Plus - XBee3 Micro (WRL-15454 & WRL-15435)

SparkFun Thing Plus - XBee3 Micro is a compact, Qwiic-compatible board featuring the Digi International XBee3 Micro Module. The XBee3 Micro Module provides 802.15.4 2.4GHz wireless connectivity (Zigbee 3.0 Protocol), and is programmable with MicroPython. The Thing Plus - XBee3 Micro has all the basics for quickly prototyping or developing a connected device, such as a remote sensor. The Qwiic connector and JST connector for the battery make for a solder-less option when working with the board which shortens setup time.

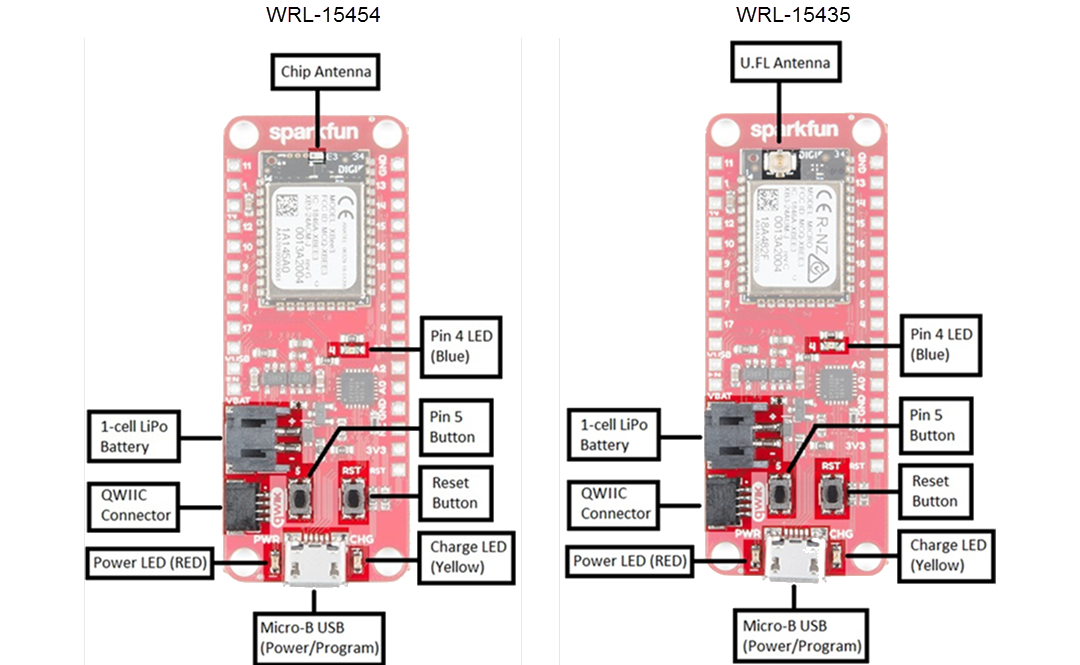

The SparkFun Thing Plus - XBee3 Micro is offered with an integrated chip antenna (WRL-15454) and with a U.FL connector (WRL-15435) for external antennas.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields, and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections means they're always connected correctly.

Features

XBee3 Micro Module
- Silicon Labs EFR32MG SoC
- 250Kbps RF, 1Mbps Serial data rates
- up to 200-ft (60m) indoor/Urban range
- Up to 4000-ft (1200m) outdoor/RF line of sight range
- +8dBm transmit power
- -103dBm receiver sensitivity
- UART, I²C, SPI interfaces
- ISM 2.4GHz frequency band (802.15.4)
- 1MB memory, 128KB RAM (32KB available for MicroPython)

20 GPIO pins
Configurable via X-CTU or AT Command Set via USB and wireless (Additional XBee3 device or mobile app required for wireless configuration)
Qwiic compatible
Integrated charging circuit and connector for 3.3v Lithium Polymer Ion batteries
2.6V_DC to 3.6V_DC supply voltage
