STMicroelectronics L99MC6GJ 中等电流输出驱动器
意法半导体 L99MC6GJ 中等电流输出驱动器是高度灵活的单片驱动器。它内置三路专用的低侧输出（通道 4 至 6）和三路可单独自行配置的输出 （通道 1 至 3）。可将其任意组合，用作低侧或高侧驱动器。L99MC6GJ 可控制电感负载、白炽灯泡或 LED。
特性
- 3 independently self configuring high-/low-side channels
- 3 low-side channels
- 0.7Ω RON (typ) at Tj= +25°C
- Current limit of each output at min. 0.6A
- PWM direct mode
- Bulb mode with recovery mode
- LED mode with slew rate control
- Bridge mode with crosscurrent protection
- SPI interface for data communication
- Temperature warning
- All outputs overtemperature protected
- All outputs short-circuit protected
- Configurable open-load detection in off mode
- 3.0V to 5.25V supply voltage
- 5μA (typ) current consumption in standby mode
- Internal clamp diodes
- HS switches operate down to 3V crank voltage
应用
- Relay drivers
- LED drivers
- Motor drivers
- Mirror adjustment

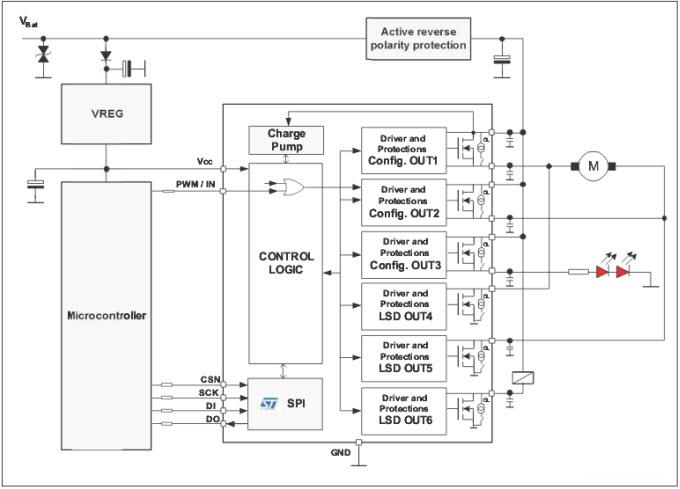

Application Diagram
