STMicroelectronics LD39130S 高精度电压调节器
STMicroelectronics LD39130S 高精度电压调节器以 1.4V 到 5.5V 的输入电压，提供最高达 300mA 的电流，典型压差为 300mV。它有 DFN6 1.2x1.3mm 封装和超小型 CSP 4 引脚封装可供选择，以实现最大程度的空间节约。该器件通过输出上的陶瓷电容进行稳定。非常低的压降、很低的静态电流和低噪声的特性，使其非常适合低功耗电池供电应用。它集成了一块内部逻辑电路，当所需输出电流非常低时，可以让调节器工作在超低功耗模式（绿色模式）下。正常工作模式对瞬变有快速响应，当负载电流增大时即可恢复。使能逻辑功能将 LD39130S 置于关闭模式下，实现低于 0.1μA 的总电流消耗。提供电流折返和热保护。
STMicroelectronics LD39130S High Accuracy Voltage Regulator is available in compact DFN6 and CSP4 packages, ideal for space-constrained applications.
特性
- 1.4V to 5.5V input voltage range
- Ultra low dropout voltage (300mV (typical) at 300mA load)
- Automatic green mode
- Very low quiescent current
- ± 1.0% at 25°C output voltage tolerance
- 300mA guaranteed output current
- A wide range of output voltages available on request
- Logic-controlled electronic shutdown
- Internal soft-start
- Compatible with ceramic capacitor COUT = 1μF
- Internal current foldback and thermal protection
- Package options
- 1.2mm x 1.3mm DFN6
- 0.69mm x 0.69mm Flip-Chip
- -40°C to +125°C operating temperature range
应用
- Smartphones
- Tablets
- Cameras
- Cordless phones and similar battery-powered systems
- Portable media players
Related Kit
STMicroelectronics KITLDO0221高性能LDO示例套件
一系列高性能LDO稳压器，可为用户应用提供最佳组合。
Related Products
STMicroelectronics LDFM极低压差稳压器
极低压差线性稳压器，可在2.5V至16V输入电源电压范围内工作。
STMicroelectronics LDK120C SOT-323-5L Low Dropout Voltage Regulators
Provides 200mA of maximum current from an input supply voltage in the range of 1.9V to 5.5V.
STMicroelectronics LDK120M SOT-23-5L Low Dropout Voltage Regulators
Provides 200mA of maximum current from an input supply voltage in the range of 1.9V to 5.5V.
STMicroelectronics LDK120P DFN-6L 低压差稳压器
采用 DFN-6L 封装，以 1.9V 到 5.5V 的输入供电电压，提供最高 200mA 的电流，典型压差为 100 mV。
STMicroelectronics LDK130C SOT-323-5L Low Dropout Voltage Regulators
300mA of current from an input supply voltage in the range of 1.9V to 5.5V in a SOT-323-5L package.
STMicroelectronics LDK130M SOT-23-5L Low Drop Voltage Regulators
Provides 300mA of maximum current from an input supply voltage in the range of 1.9V to 5.5V.
STMicroelectronics LDK130 DFN-6L低压差稳压器
采用DFN-6L封装，以1.9V到5.5V的输入供电电压，提供最高300mA的电流。

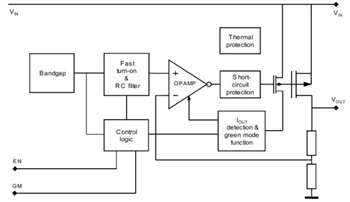

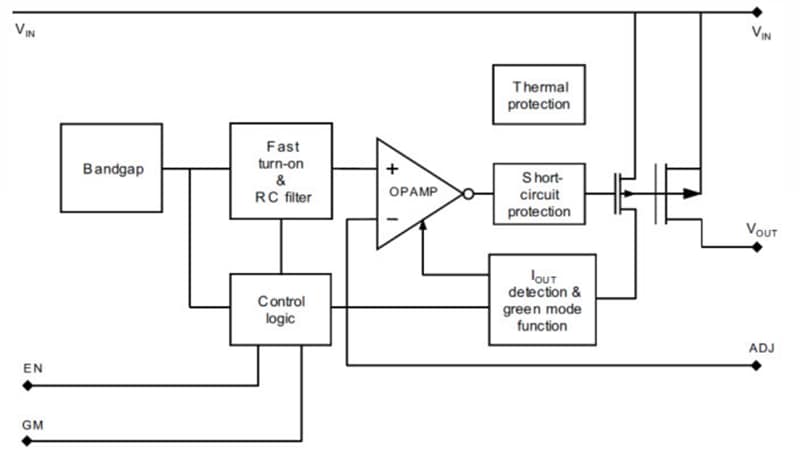

LD39130S Regulators Block Diagrams
.png "框图 - STMicroelectronics LD39130S 高精度电压调节器")

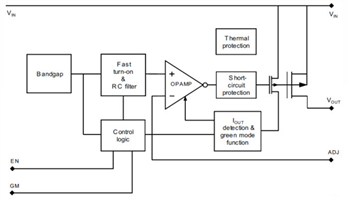

.png "框图 - STMicroelectronics LD39130S 高精度电压调节器")
