STMicroelectronics 6A-16A 免缓冲器双向可控硅
STMicroelectronics 6A-16A 免缓冲器双向可控硅采用通孔式封装，可用于要求高整流性能的通用交流开关应用的开/关或相角控制功能。如果满足数据表中规定的限值，该器件可不搭配缓冲器使用。这些器件有多个 800V 版本，区别仅在额定电流的不同：6A、8A、12A 或 16A。这些器件是通用交流线路负载开关、电机控制、小家电、照明、浪涌电流限制及过压撬棍保护应用的理想选择。
特性
- No need for a snubber with Snubberless™ versions, if the design respects datasheet limits
- Direct drive from a microcontroller when IGT = 10mA
- ITRMS from 4A to 16A
- VDRM/VRRM up to 800V
- VDSM/VRSM up to 900V
- TJ up to 150°C @ VDRM/VRRM 600V on some devices
- 4 ranges of IGT
- 10mA directly driven from a microcontroller
- 20mA Snubberless
- 25mA standard 4 quadrants
- 35mA Snubberless
- Better thermal management at keeping loads under control at higher case temperatures
- UL recognized up to 2500 VRMS (E81734)
- ECOPACK®2 compliant components
- Halogen free and RoHS compliant

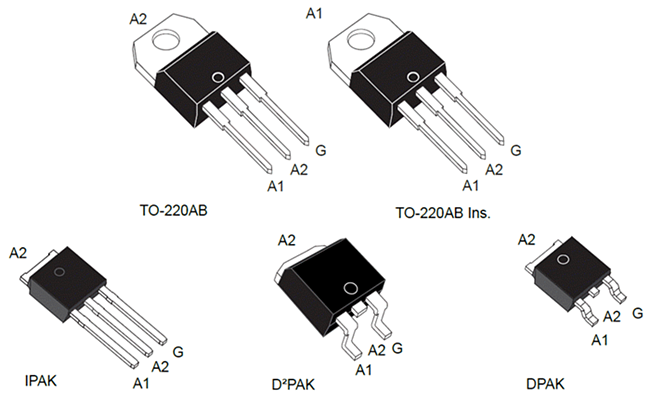

- Package options
- TO-220AB
- TO-220AB Insulated
- D2PAK
- DPAK
- IPAK
应用
- Low- and medium-power load control in industrial systems
- Phase control operation in light dimmers and motor speed controllers
- Heating regulation
- Induction motor starting circuits
- Kitchen appliances
- Power tools
Package Options
Development Tools
STMicroelectronics STEVAL-GLA001V1评估板
绝缘交流开关控制评估板，用于家用电器。
Related Products
STMicroelectronics H系列三端双向可控硅
高性能、高温三端双向可控硅，适用于暖通空调和电机控制。
STMicroelectronics 高温三端双向可控硅
适用于通用电源交流开关。
Complete Your Design
STMicroelectronics 标准产品
各种可直接替换器件，适用于通用模拟IC、分立元件和串行EEPROM。
发布日期: 2014-01-08
| 更新日期: 2023-10-30
