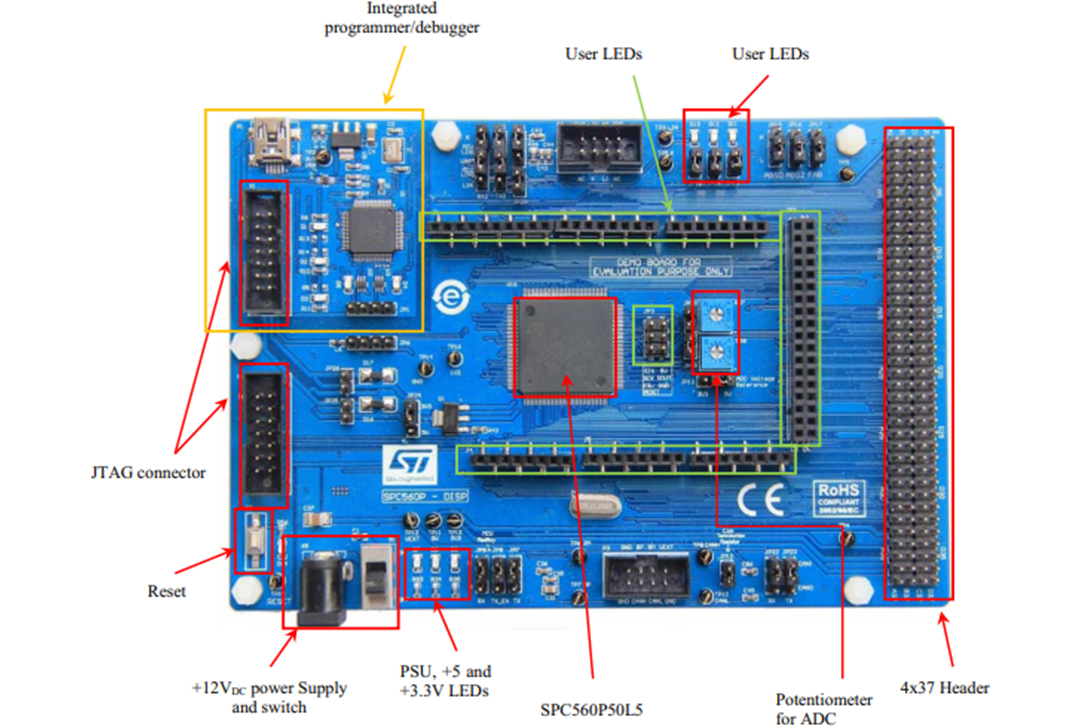

STMicroelectronics SPC560P-DISP探索套件

STMicroelectronics SPC560P-DISP探索套件以合理的价格，对CPU、GPIO和外设（CAN、JTAG、K-Line及LIN）的完全访问权限，来探索SPC560 P线路电源架构微控制器。专用连接器允许插接Arduino插板（兼容Arduino）在SPC5Studio内有免费的准备好运行的应用固件示例，支持快速评估和开发。SPC5Studio包含可视觉配置的代码生成引擎、板支持包（BSP）、启动例程、中断设备、免费实时操作系统（可选）和一整套低级别驱动程序。SPC5Studio包含HighTec GNU "C"编译程序，支持30天免费试用。SPC5Studio可免费下载。SPC560 P线路设计用于对成本敏感的底盘、气囊、电动液压助力转向、电动助力转向、电机控制应用等。

特性

SPC560P50L5 32-bit 64MHz e200z0h CPU; 32-bit Power Architecture^®Technology CPU, 576KB Flash in an LQFP144 package
Shield Connectors (Arduino compatible)
On-board USB-JTAG PLS debugger and HW selection mode to use stand-alone JTAG debuggers (2 x 7 male 100mil connector)
Free 128KB code size limited debugging
Board power supply: from the USB bus (5V supply voltage) or through external +12V PSU

All GPIOs and DSPI/USB signals accessible by a 4x37 100mil pin grid array allowing connection of additional boards for dedicated applications
CAN, K-LINE, LIN, and FlexRay interfaces
Main power switch
Reset push button
2 potentiometers for ADC evaluation
12MHz crystal
152mm x 103mm board size
