STMicroelectronics STNRGxxxA 数字控制器
意法半导体 STNRGxxxA 数字控制器属于 STNRG 数字装置系列，用于先进的功率转换应用。STNRG 系列改进了成功的 STLUX™ 系列的设计,构成了众多 LED 驱动器构造的一部分。支持工业功率转换应用，如用于智能电源的 PFC+LLC、交错 LC DC/DC、交错 PFC，以及用于电动汽车试验线路驱动器的全电桥。
特性
- Up to 6 programmable PWM generators (SMED - "State Machine Event Driven")
- 10ns event detection and reaction
- 1.3ns maximum PWM resolution
- Single, coupled and two coupled operational modes
- Up to 3 internal/external events per SMED
- 4 analog comparators
- 4 internal 4-bit references
- Up to 4 external references
- Less than 50ns propagation time
- Continuous comparison cycle
- Configurable hysteresis voltage levels
- ADCs (up to 8 channels)
- 10-bit precision, with operational amplifier to extend resolution to 12-bit equivalent
- Sequencer functionality
- 1M input impedance
- x1 and x4 configurable gain value
- Memories
- Flash and E2PROM with read while write (RWW) and error correction code (ECC)
- 32Kbytes Flash program memory; data retention 15 years at +85°C after 10 kcycles at +25°C
- 1Kbyte data memory true data E2PROM; data retention: 15 years at 85°C after 100 kcycles at +85°C
- 6Kbytes RAM
- -40°C to +105°C operating temperature range
- Integrated microcontroller
- Advanced STM8® core with Harvard architecture and 3-stage pipeline
- 16MHz maximum fCPU
- Clock management
- Internal 96MHz PLL
- Low power oscillator circuit for external crystal resonator or direct clock input
- Internal, user-trimmable 16MHz RC and low power 153.6kHz RC oscillators
- Clock security system with clock monitor
- Basic peripherals
- System, auxiliary and basic timers
- IWDG/WWDG watchdog, AWU, ITC
- Reset and supply management
- Multiple low power modes (wait, slow, auto-wakeup, Halt) with user definable clock gating
- Low consumption power-on and power-down reset
- I/O
- Multifunction bidirectional GPIO with highly robust design, immune against current injection
- Fast digital input DIGIN, with configurable pull-up
- Communication interfaces
- UART asynchronous with SW flow control and bootloader support
- I2C master/slave fast-slow speed rate

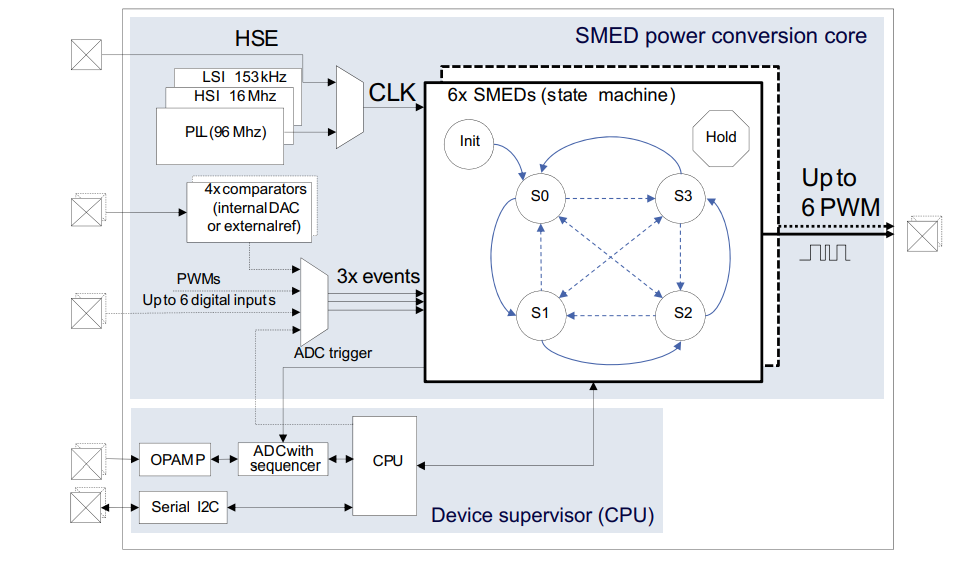

System Architecture
