Texas Instruments CDCE(L)913 Programmable Clock Synthesizers

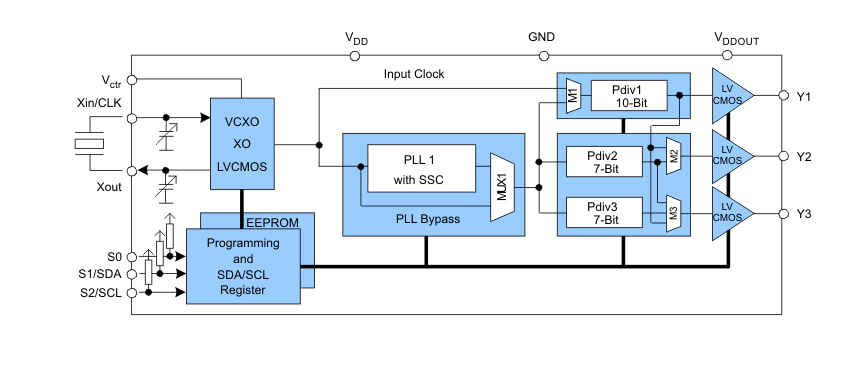

Texas Instruments CDCE(L)913 Programmable Clock Synthesizers offer high-performance and low-cost. The devices generate up to three output clocks from a single input frequency. These outputs can be programmed in-system for any clock frequency up to 230MHz, using the integrated configurable PLL. Separate output supply pins are supplied on the CDCE(L)913 V_DDOUT, which is 1.8V for CDCEL913 and 2.5V to 3.3V for CDCE913. The PLL supports SSC (spread-spectrum clocking) for better electromagnetic interference (EMI) performance. The Texas Instruments CDCE(L)913 operates in a 1.8V environment, with a temperature range of –40°C to 85°C.

Features

Member of programmable clock generator family
- CDCE913/CDCEL913 (1-PLL, 3 outputs)
- CDCE925/CDCEL925 (2-PLL, 5 outputs)
- CDCE937/CDCEL937 (3-PLL, 7 outputs)
- CDCE949/CDCEL949 (4-PLL, 9 outputs)
In-system programmability and EEPROM
- Serial programmable volatile register
- Nonvolatile EEPROM to store customer settings
Flexible input clocking concept
- 8MHz to 32MHz external crystal
- Pull range ±150ppm on-chip VCXO
- Single-ended LVCMOS up to 160MHz
Free selectable output frequency up to 230MHz
Separate output supply pins
- CDCE913 (3.3V and 2.5V)
- CDCEL913 (1.8V)
Low-noise PLL core
- PLL loop filter components integrated
- Low period jitter (typical 50ps)

Flexible clock driver
- Three user-definable control inputs [S0/S1/S2], for example, SSC selection, frequency switching, output enable, or power down
- Generates highly accurate clocks for video, audio, USB, IEEE1394, RFID, Bluetooth^®, WLAN, Ethernet™, and GPS
- Generates common clock frequencies used with TI-DaVinci™, OMAP™, DSPs
- Programmable SSC modulation
- Enables 0PPM clock generation
1.8V device power supply
–40°C to 85°C wide temperature range
Packaged in TSSOP
Development and programming kit for easy PLL design and programming (TI Pro-Clock™)
