Texas Instruments Texas Instruments CC1110F32 Sub-1GHz片载系统

Texas Instruments CC1110F32是一套小于1GHz的片载系统(SoC)，用于小功率无线应用。TI CC1110F32 SoC设备将CC1101RF收发器的卓越性能与工业标准增强型8051微控制器(MCU)、高达32KB的系统内可编程闪存以及高达4KB的RAM相结合。TI CC1110F32设计用于315/433/868/915 MHz ISM/SRD频段的小功率SoC无线应用。这些TI SoC设备还可用于无线报警和安全系统、工业监测和控制以及无线传感器网络。

特性

  • Radio
    • High-performance RF transceiver based on the market-leading CC1101
    • Excellent receiver selectivity and blocking performance
    • High sensitivity (−110dBm at 1.2kBaud)
    • Programmable data rate up to 500kBaud
    • Programmable output power up to 10dBm for all supported frequencies
    • Frequency range: 300 to 348MHz, 391 to 464MHz, and 782 to 928MHz

  • Low Power
    • Low current consumption (RX: 16.2mA @ 1.2kBaud, TX: 15.2mA @ −6dBm output power)
    • 0.3μA in PM3 (the operating mode with the lowest power consumption)
    • 0.5μA in PM2 (operating mode with the second lowest power consumption, timer, or external interrupt wakeup)

  • MCU, Memory, and Peripherals
    • High performance and low power 8051 microcontroller core.
    • Powerful DMA functionality
    • 8/16/32KB in-system programmable flash, and 1/2/4KB RAM

  • General
    • Wide supply voltage range (2.0V to 3.6V)
    • RoHS compliant 6x6mm QFN 36 package

应用

  • Low-power SoC wireless applications operating in the 315/433/868/915MHz ISM/SRD bands
  • Wireless alarm and security systems
  • Industrial monitoring and control
  • Wireless sensor networks

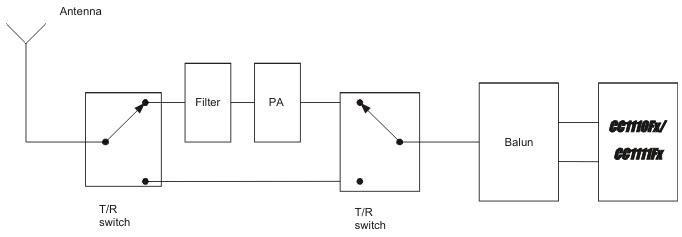

Functional Diagram

Texas Instruments Texas Instruments CC1110F32 Sub-1GHz片载系统
