Analog Devices Inc. EVAL-ADuM36xNEBZ Evaluation Board
Analog Devices EVAL-ADuM36xNEBZ Evaluation Board supports simplified, efficient evaluation of the 3.0kV rms ADuM36xN family of iCoupler® digital isolators. The EVAL-ADuM36xNEBZ evaluation board also enables examination of multiple other 16-lead QSOP iCoupler digital isolators via the unpopulated U1, U3, and U4, which provide JEDEC-standard 16-Lead QSOP footprints and routing appropriate for evaluating supported devices.
The EVAL-ADuM36xNEBZ evaluation board features V-shaped grooves between components (U1 to U4). These grooves enable the printed circuit board (PCB) to be separated into individual sections. Engineers can isolate a specific device for examination on a breadboard or similar prototyping board to simplify testing. The power supply and input/output pins can be connected either directly to the pin header connectors or to a prototyping board.
The Analog Devices EVAL-ADuM36xNEBZ evaluation board follows printed circuit board (PCB) design practices, including a ground plane on each side of the isolation barrier. No other electromagnetic interference (EMI) or noise mitigation design features are included on this board.
Features
- Simplified evaluation of the ADuM36xN digital isolator family
- Supports evaluation of other 6-channel iCoupler digital isolators in 16-lead QSOP package
- Compact, easy configuration, optimized for rapid evaluation on breadboards/prototype boards
- Test points can be fitted to measure all signals
Applications
- Serial-Peripheral Interface (SPI) data converter isolation
- RS-485 and controller area network with flexible data rate (CAN FD) industrial field bus isolation
- PWM controller signal isolation
- General-purpose multichannel isolation
Required Equipment
- Oscilloscope
- Signal generator
- 2.25V to 5.5V supply
- Breadboard/prototype board

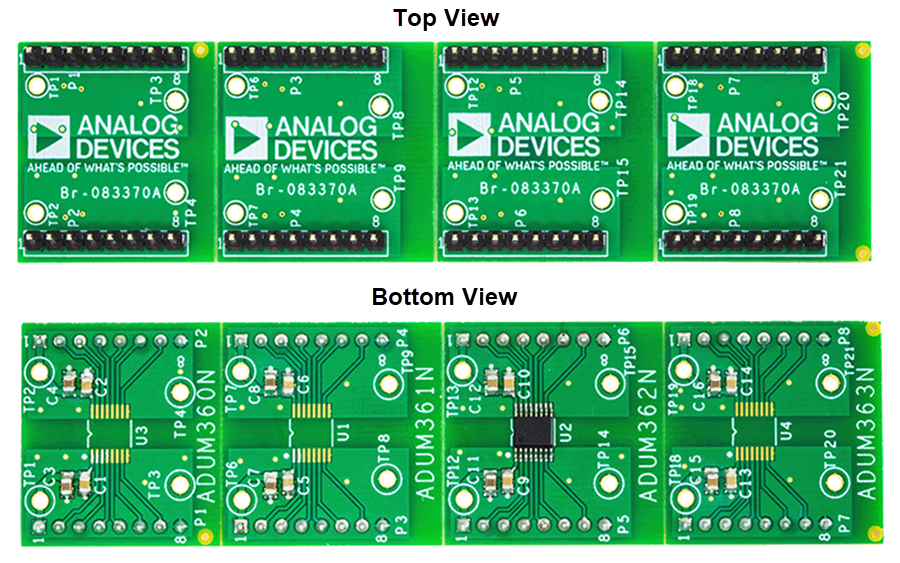

Board Layout
