Neutron Controls Brushless DC Control Module
Neutron Controls Brushless DC Control Module allows the AURIX to control a 3-phase motor through the motor control connector on the carrier platform. Two modules can be connected simultaneously. Neutron Controls Brushless DC Control Module enables a software team to begin its development of production level application software.
Kit Contents
- REDline interface module
- Brushless DC motor standard 4000RPM trinamic motion control
- Power adapter converts 120V to 3.3V
- Software driver
- USB Flash drive with software image/documentation
- Box and internal foam for BLDCKITs
- Label for BLDCKIT

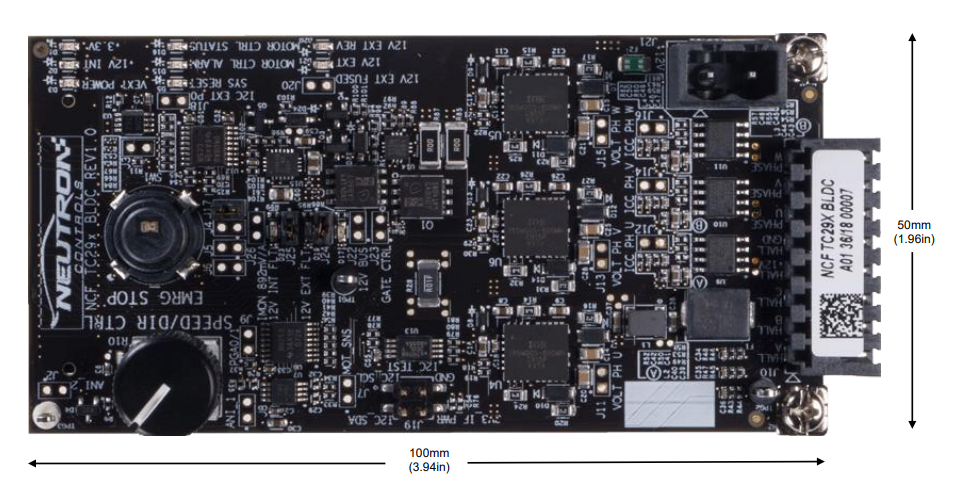

Overview
Associated Peripheral Modules
Neutron Controls Power Conversion Module
Provides the necessary power rails to supply the AURIX™ MCU Platform Module.
Associated Carrier Dev Kits
Neutron Controls Base Carrier Development Platform Kits
Features a REDline™ Carrier board that connects the AURIX™ MCU Platform Modules to MCU functions.
Associated MCU Module Kits
Neutron Controls AURIX™ TC214/224/234 MCU Platform Module Kit
Features a variety of SAK-TC2x4 MCU pin-compatible versions in a TQFP144 package.
Neutron Controls AURIX™ TC277/297/299 MCU Platform Module Kits
Designed for Infineon TC277/297/299 MCU variations.
Associated Infineon MCUs
Infineon Technologies AURIX 32位TriCore微控制器
功能强大、可扩展的多核MCU，非常适合用于各种汽车应用。
Infineon Technologies AURIX TC21xL 32位TriCore微控制器
133MHz TriCore MCU，具有TriCore DSP功能和高达0.5MB的闪存（带ECC保护）。
Infineon Technologies AURIX TC22xL 32位TriCore微控制器
133MHz TriCore MCU，具有TriCore DSP功能和高达1MB的闪存（带ECC保护）。
Infineon Technologies AURIX TC23xL 32位TriCore微控制器
200MHz TriCore MCU，具有2个FlexRay、2个LIN、4个QSPI和6个CAN连接。
Infineon Technologies AURIX TC27xT 32位TriCore微控制器
三200MHz TriCore MCU，具有TriCore DSP功能和高达4MB的闪存（带ECC保护）。
Infineon Technologies AURIX TC29xT 32位TriCore微控制器
三个高性能32位超标量TriCore V1.6.1 CPU，运行速度高达300MHz。
