STMicroelectronics EVLMG7 MASTERGAN7 Power Module Daughter Board
STMicroelectronics EVLMG7 MASTERGAN7 Power Module Daughter Board is a GaN-based half-bridge power module equipped with MASTERGAN7, enabling quick creation of new topologies without requiring a complete PCB design. The module is shipped with available footprint locations for low-side resistors (set to zero) and for two external body diodes (not mounted), connected in parallel to each half-bridge GaN. The user can easily configure the module to operate with many resonant and hard-switching topologies.
The VCC supply can be derived directly from the application IC controller. The on-board bootstrap diode supplies the high-side VBOOT voltage and ensures extremely quick activation of the high-side section. MASTERGAN7 has two internal LDOs that quickly generate the optimal 6V supply for the two high-side and low-side GaN drivers. The module accepts separate driving signals having an amplitude range between 3V and 16V independently of the VCC level. The STMicroelectronics EVLMG7 is a 30mm x 42mm wide FR-4 PCB, resulting in an Rth(J-A) of approximately 40°C/W, without forced airflow.
Features
- GaN half-bridge daughter board equipped with MASTERGAN7, suitable for power applications requiring fast wake-up time
- Comprehensive set of input control signals (LIN, HIN, SD, and STBY) with a wide amplitude range to be connected to either analog controllers or microcontrollers
- VCC is directly connected to the controller IC supply, and no external voltage regulator is needed to provide a proper supply and protection to GaN drivers
- Discrete bootstrap diode and capacitor for high-frequency solutions
- Adjustable low-side shunt to serve peak current mode control algorithms
- External parallel body diodes to serve resonant application needs
- 30mm x 40mm FR4 dual layer PCB with 40°C/W junction to ambient thermal resistance
- RoHS compliant
Applications
- Battery chargers and adapters
- Solar inverters
- Resonant converters
- High-voltage DC-DC converters (buck, buck-boost)
- High-voltage PFC, including totem pole configuration

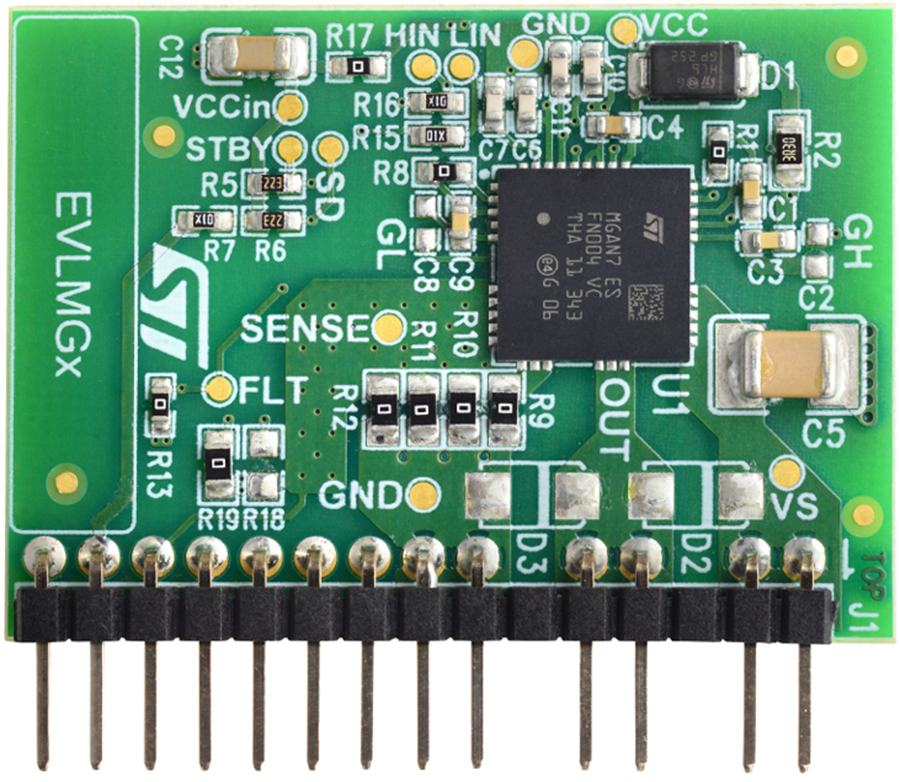

Board Layout
