STMicroelectronics STEVAL-IHT005V2 演示板

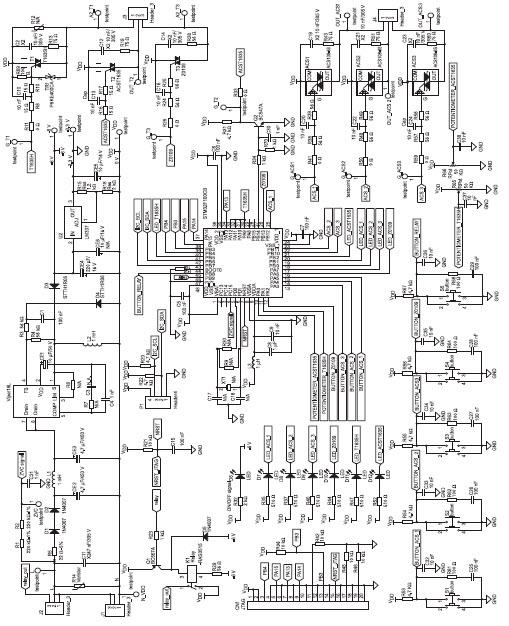

STMicroelectronics STEVAL-IHT005V2 演示板带有完全 3.3 V ACS/Triac 控制，使用 STM32F100，基于 STMicroelectronics™ 元器件为家电应用提供了完整的解决方案。该板使设计人员能通过一个 3.3V 电源来评估交流开关控制的可行性。重点放在对强大的全 3.3V 解决方案的验证，基于 IEC- 61000-4-4（浪涌）试验中的 class A 4 kV 。

STMicroelectronics STEVAL-IHT005V2 Demonstration Board can control two high power loads up to 2830W thanks to the T1635H, which is a 16A, 600V high-temperature triac, and up to 2050W using the ACST1635-8FP, which is a 16A, 800V high-temperature overvoltage-protected ACST device. The high-power load control is based on phase-angle control.

To limit inrush current and possible current peaks, the board features a soft-start routine and a smooth power change function for the high power loads. The STEVAL-IHT005V2 can also control four low-power loads up to 100W thanks to three ACS108-8S, which are 0.8A, 800V overvoltage-protected ACS devices, and a Z0109, 1A standard four-quadrant 600V triac.

特性

Complete solution for -3.3V control
90V_AC to 265V_AC input voltage range at 50Hz / 60Hz
Negative 6V/3.3VDC aux power supply based on the VIPer16L in buck-boost topology
Total power consumption in standby mode lower than 0.5W for 264V / 50Hz
48-pin, 32-bit value line family STM32F100C4T6B MCU as main controller
Zero voltage switching (ZVS) interrupt to synchronize MCU events with voltage mains
1 x T1635H-6T and 1 x ACST1635-8FP for phase control of high power loads
5 discrete power level states with soft change for phase-angle controlled devices
